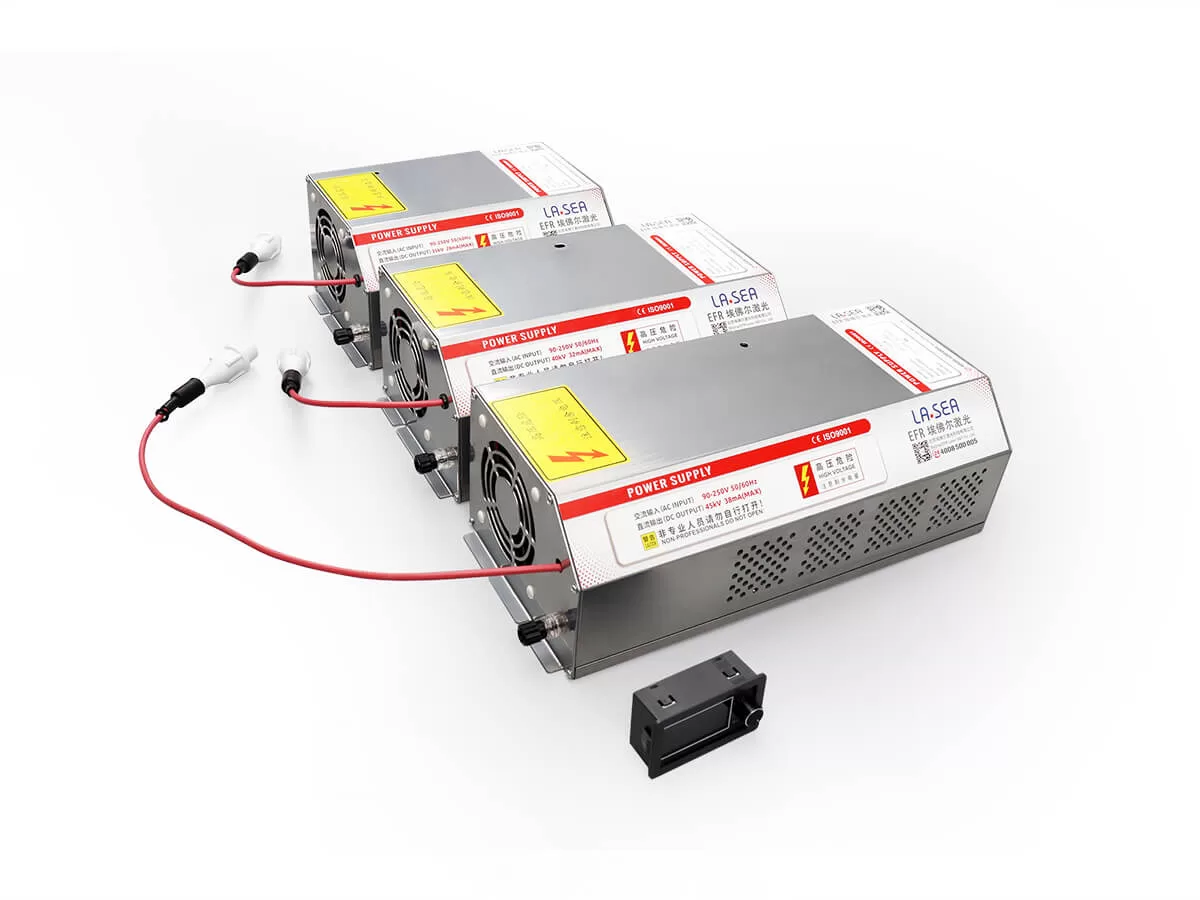

CO₂ Laser Power Supply, PS-N

Features

Great Compatibility:Characterized by a high efficiency, frequency, and speed, the PS-N series CO2 Laser power supply is a matched power supply for CO2 Laser devices. With the great compatibility, it can easily and directly be connected to laser devices without a ballast.

High Efficiency:The laser equipment power supply features a high power transfer efficiency and can facilitate the start of the CO2 Laser tube, enabling it to work properly, and ensure a prolonged service life.

Dual-Use Interface:The CO2 Laser power supply is equipped with a dual-use interface, which can either be used to achieve closed-loop control, or to test the actual operating current of the laser tube.

Open Circuit Protection:The CO2 Laser power supply for optical processing machinery can achieve open circuit protection. If the housing has a safe ground connection, the laser power supply can function on an open circuit for a short amount of time. This protection helps extend the service life of the laser power supply.

Item PS-N80 PS-N100 PS-N150
AC Frequency 47-63Hz
Input Voltage AC90-250V
Max Input Power 600W 650W 900W
Max Input Current (90V input) 5.5A 6A 8A
Max Output Voltage 40kV 45kV 55kV
Max Output Current 28mA 32mA 38mA
Efficiency ≥90%(Full load)
MTBF(Mean time between failure) ≥10000 Hours
Response Speed ≤1mS(The time from the signal is given to output current reaches 90% of set current )
Withstand Voltage input-output, input-shell:AC1500V 10mA 60s;
Working Environment Temperature(-10~40)℃ , Relative Humidity:≤90%
Cooling Force Air cooling
Matching Laser Tube Power 50-80W 80-120W 130-180W
Dimension L*W*H(mm) 235*144*104 278*144*104 330*144*104
Weight (KG) 2.15kg 2.45kg 3.2kg
Color Silver

Download Now!

Description

Great Compatibility:Characterized by a high efficiency, frequency, and speed, the PS-N series CO2 Laser power supply is a matched power supply for CO2 Laser devices. With the great compatibility, it can easily and directly be connected to laser devices without a ballast.

High Efficiency:The laser equipment power supply features a high power transfer efficiency and can facilitate the start of the CO2 Laser tube, enabling it to work properly, and ensure a prolonged service life.

Dual-Use Interface:The CO2 Laser power supply is equipped with a dual-use interface, which can either be used to achieve closed-loop control, or to test the actual operating current of the laser tube.

Open Circuit Protection:The CO2 Laser power supply for optical processing machinery can achieve open circuit protection. If the housing has a safe ground connection, the laser power supply can function on an open circuit for a short amount of time. This protection helps extend the service life of the laser power supply.
