| Model | PS-100/150A |
|---|---|
| Input Voltage | AC90-264V |
| AC Frequency | 47– 63Hz |
| Max Input Power | 950W |
| Max Input Current | 9A |
| Max Output Voltage | 55kV |
| Max Output Current | 45mA |
| Efficiency | ≥90%（at full load） |
| MTBF(Mean time between failure) | ≥10000 Hours |
| Response Speed | ≤1mS (the time from when the switch signal is given to when the output current rises to 90% of the set current) |
| Withstand Voltage | Input-output, input-chassis: AC1500V 10mA 60s; output negative connected to the chassis |
| Working Environment | Working temperature (-10~40) ℃, relative humidity: ≤90% |
| Control Interface | TTL level switch control, the effective level can be selected as high or low (see the description of the control terminal for details) |
| Cooling | Forced air cooling |
| Matching Laser Tube Power | 50-80W |
| Dimension L*W*H(mm) | 395*189*111 |
| Weight （KG） | 4.6kg |
| Color | black |
-
E Series CO2 Laser Tube
(75W-90W-100W-130W-140W)
-
A Series CO2 Laser Tube
(70W-80W-90W-120W)
-
F Series CO2 Laser Tube
(80W-100W-130W-140W-150W-170W)
-
CL Series CO2 Laser Tube
(35W-40W-50W-60W-80W)
-
X Series CO2 Laser Tube
(75W-90W-100W-130W-150W)
-
F300 Series CO2 Laser Tube
(260W)
-
F300-Ⅰ Enhanced Laser Tube
(260W)
-
X300 Series CO2 Laser Tube
(260W)
-
X300-Ⅰ Enhanced Laser Tube
(260W)
-
X400 Series CO2 Laser Tube
(400W)
- CO2 Laser Power Supply
- CO2 Laser Optics
Contact Us
Beijing EFR Laser S&T Co., Ltd.
Add.: No.101, Building 22, No.6 Hengye Seven Street, Yongle Industrial Development Zone, Tongzhou District, Beijing
Zip Code: 101105
Contact person: Mr. Zhang
Tel.: 0086-15901348506
24-hour service hotline: 4008-500-005
Fax: +86-10-64361009
Email: info@bjefr.com
Tags
CO₂ laser tube
laser equipment accessory
laser tube for laser engravers
total reflector
laser focus lens

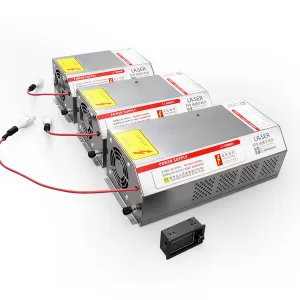

CO2 Laser Power Supply, PS -100/150A
Features
1. Targeted design: power supply specifically designed for high power CO2 laser tube of 200W-800W.
2. Voltage stabilization: provided with power factor correction (PFC) function, it is compatible for different input voltage within a range of AC90-264V, 50/60Hz.
3. Strong power: when the input voltage is within an accepted range, it maintains a constant current of up to 45mA.
4. High safety: designed with open circuit protection function, this CO2 laser power supply can protect laser equipment from damage caused by no-load condition, thus ensuring safe operation while significantly prolonging the service life of the power supply.
5. Simple laser power control: the laser power can be controlled by both 0~5V analog signal and 5V PWM signal.
6. Manual test function: it allows operator to quickly detect the fault of power supply and laser.
Description
1. Targeted design: power supply specifically designed for high power CO2 laser tube of 200W-800W.
2. Voltage stabilization: provided with power factor correction (PFC) function, it is compatible for different input voltage within a range of AC90-264V, 50/60Hz.
3. Strong power: when the input voltage is within an accepted range, it maintains a constant current of up to 45mA.
4. High safety: designed with open circuit protection function, this CO2 laser power supply can protect laser equipment from damage caused by no-load condition, thus ensuring safe operation while significantly prolonging the service life of the power supply.
5. Simple laser power control: the laser power can be controlled by both 0~5V analog signal and 5V PWM signal.
6. Manual test function: it allows operator to quickly detect the fault of power supply and laser.
