Model | Size (mm) |
Output Power (W) |
Peak Power (W) |
Warranty Period (day) |
Catalyst |
---|---|---|---|---|---|
DF18 | 1850±20 | 170 | 190 | 360 | yes |

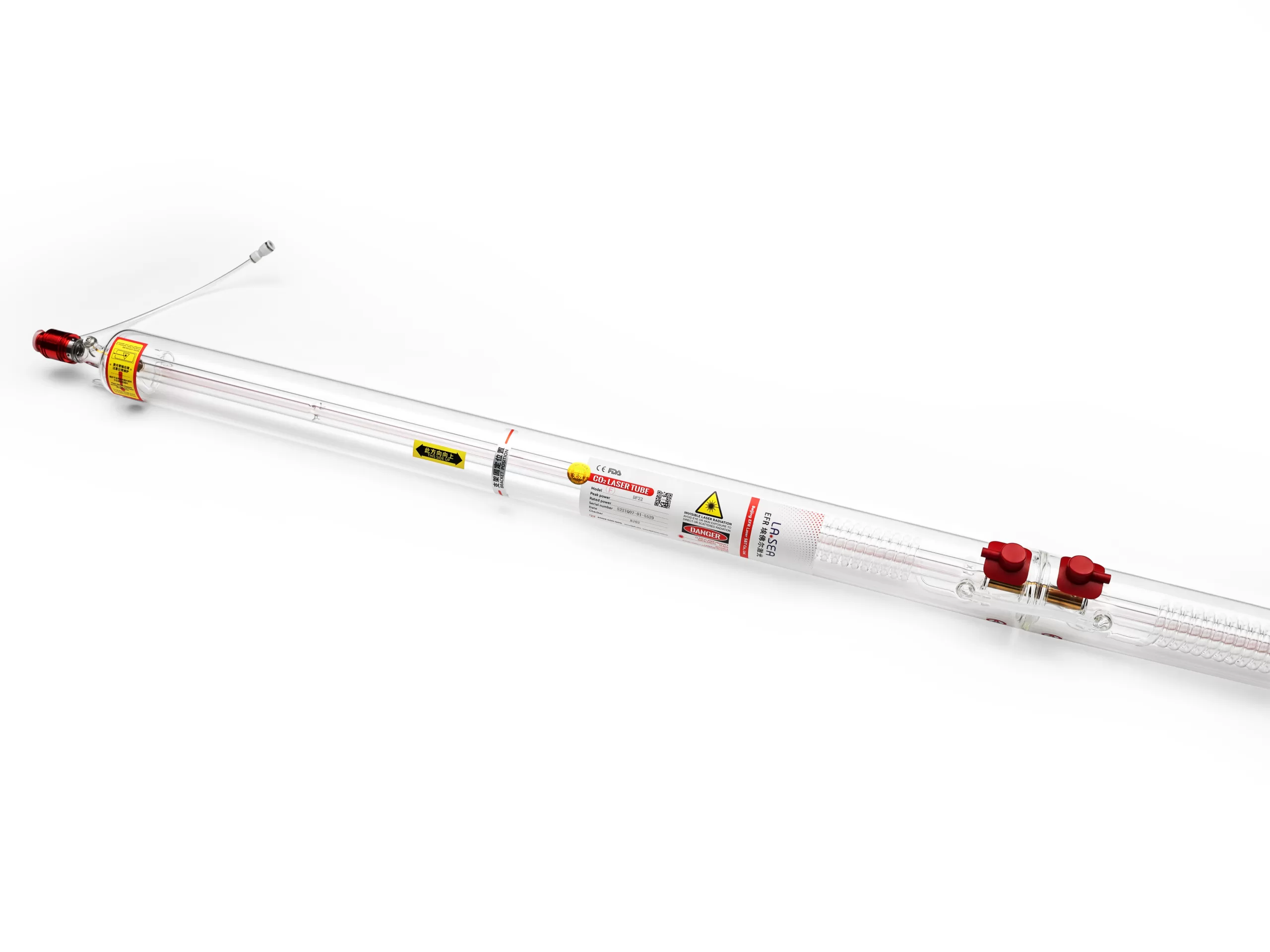

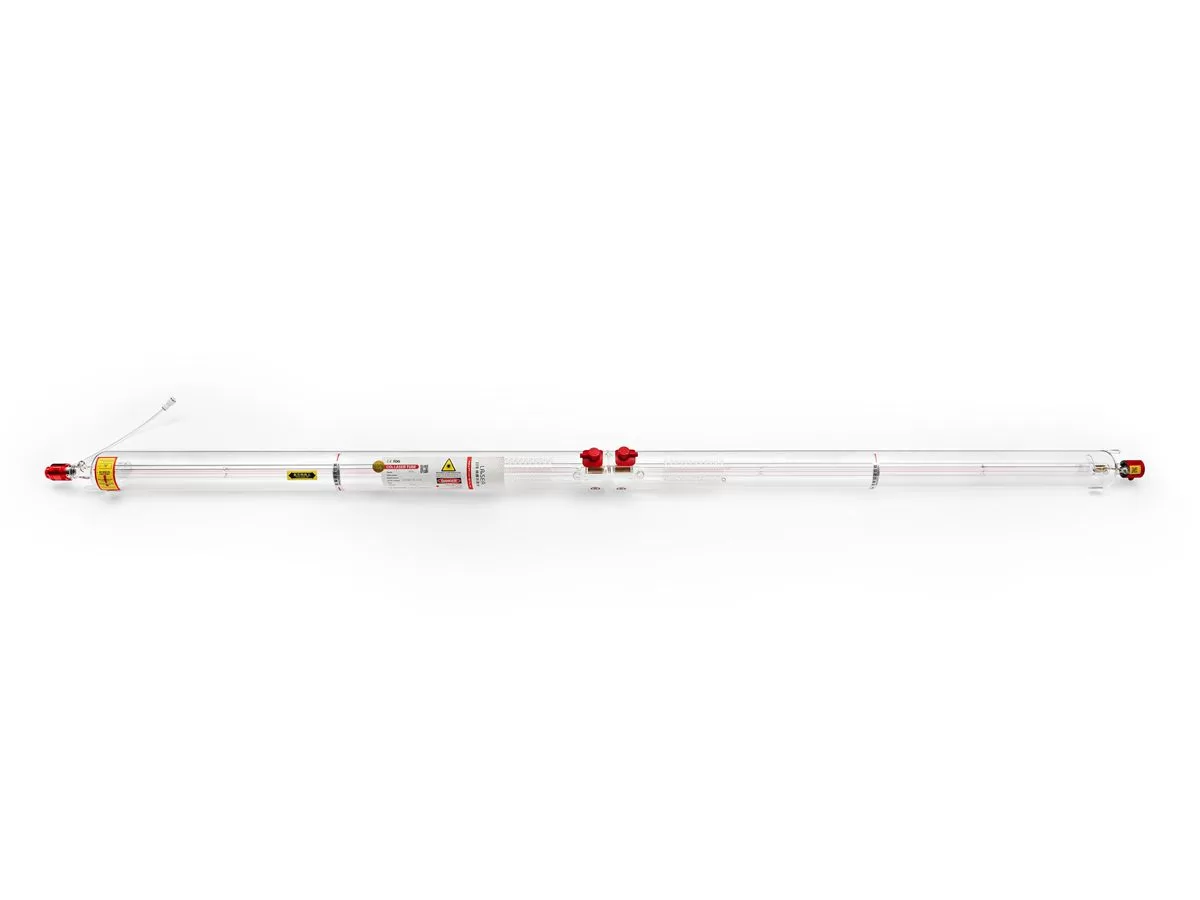

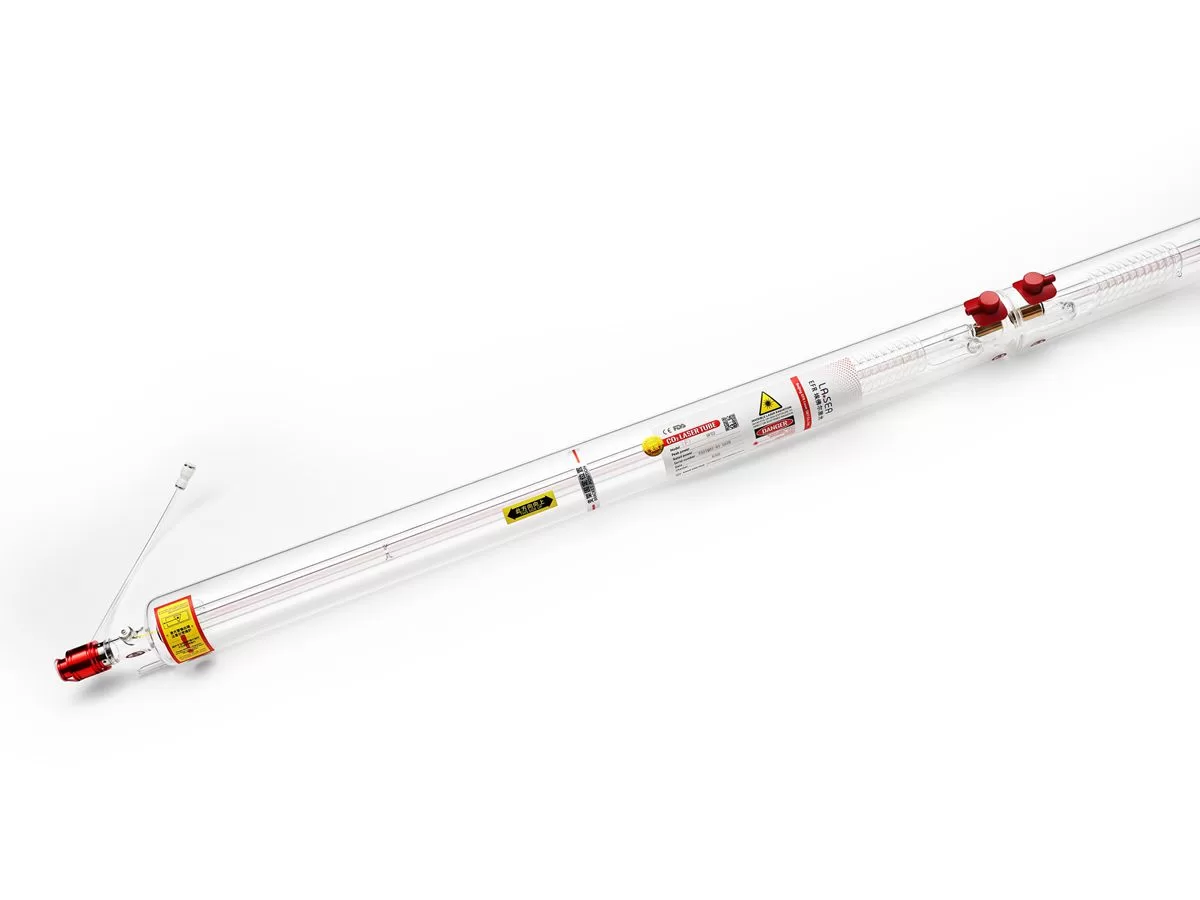

DF22 | 2250±20 | 200 | 220 | 360 | yes |
-
E Series CO2 Laser Tube
(75W-90W-100W-130W-140W)
-
A Series CO2 Laser Tube
(70W-80W-90W-120W)
-
F Series CO2 Laser Tube
(80W-100W-130W-140W-150W-170W)
-
CL Series CO2 Laser Tube
(35W-40W-50W-60W-80W)
-
X Series CO2 Laser Tube
(75W-90W-100W-130W-150W)
-
DF Series CO2 Laser Tube
(170-200W)
-
F300 Series CO2 Laser Tube
(300W)
-
F300-Ⅰ Enhanced Laser Tube
(300W)
-
F450 Enhanced Laser Tube
(4500W)
-
X300 Series CO2 Laser Tube
(260W)
-
X300-Ⅰ Enhanced Laser Tube
(260W)
-
X400 Series CO2 Laser Tube
(400W)
- CO2 Laser Power Supply
- CO2 Laser Optics
Contact Us
Beijing EFR Laser S&T Co., Ltd.
Add.: No.101, Building 22, No.6 Hengye Seven Street, Yongle Industrial Development Zone, Tongzhou District, Beijing
Zip Code: 101105
Contact person: Mr. Zhang
Tel.: 0086-15901348506
24-hour service hotline: 4008-500-005
Fax: +86-10-64361009
Email: info@bjefr.com
Tags
CO₂ laser tube
laser equipment accessory
laser tube for laser engravers
total reflector
laser focus lens

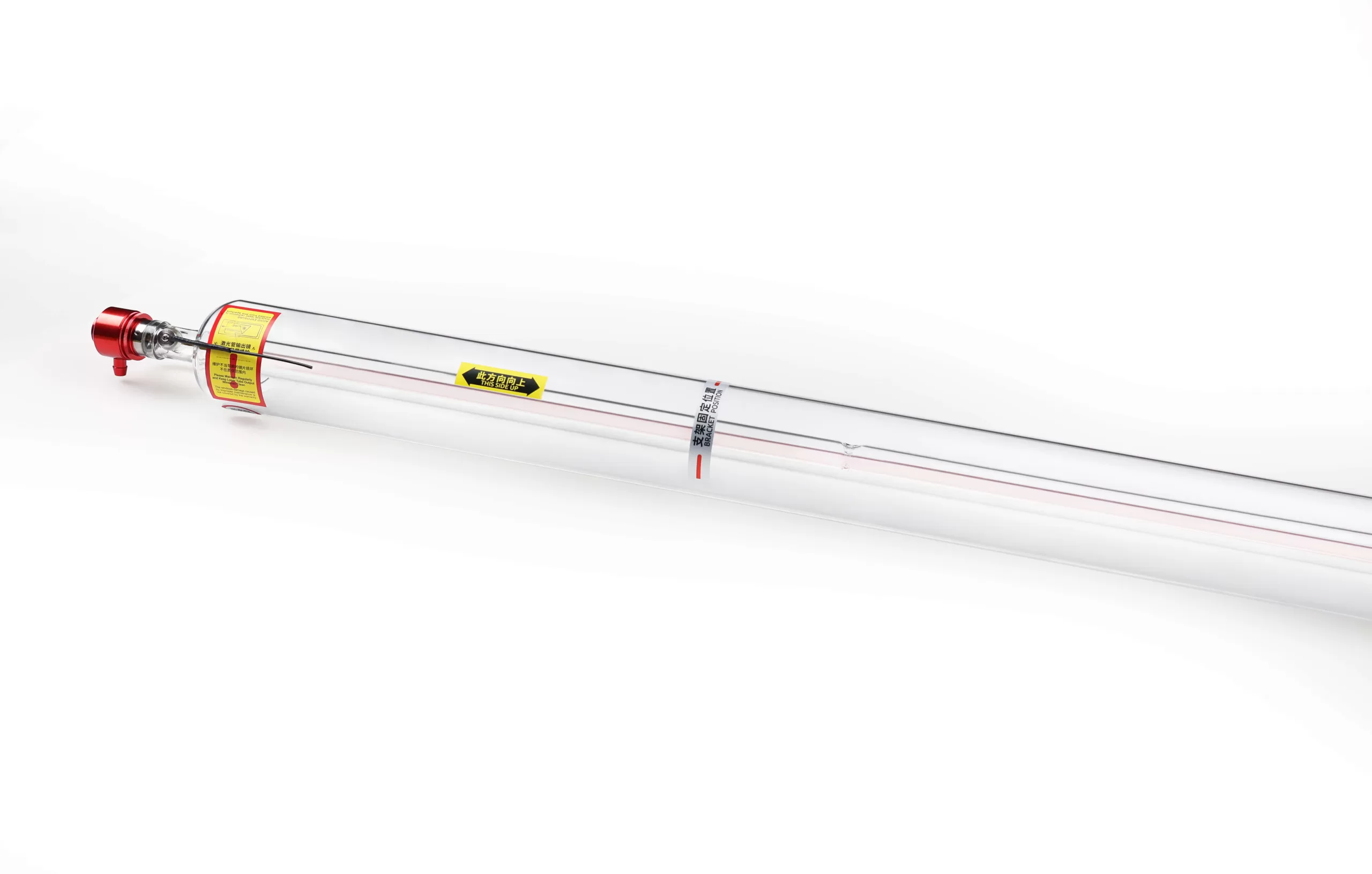

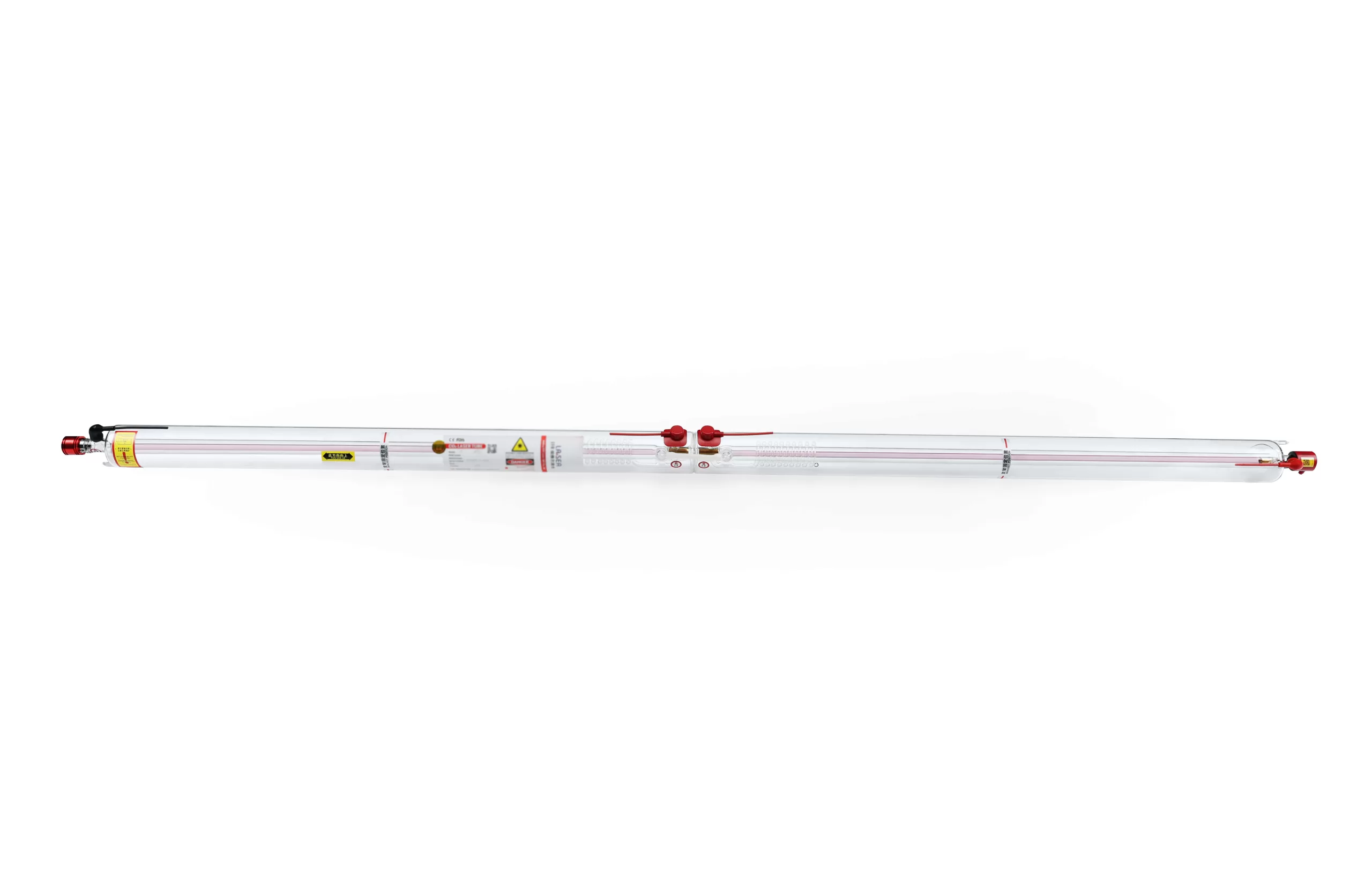

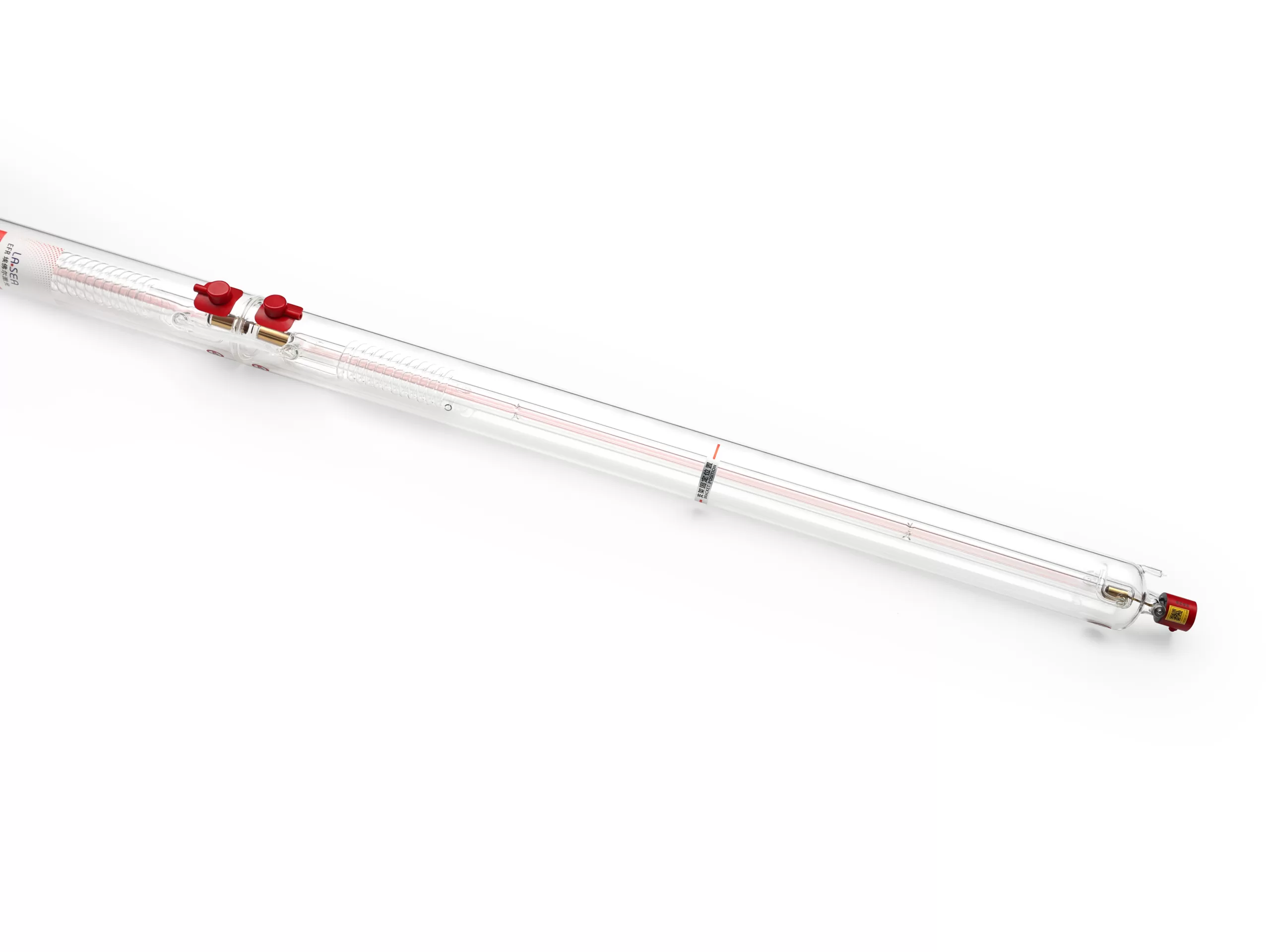

DF Series CO2 Laser Tube
Features

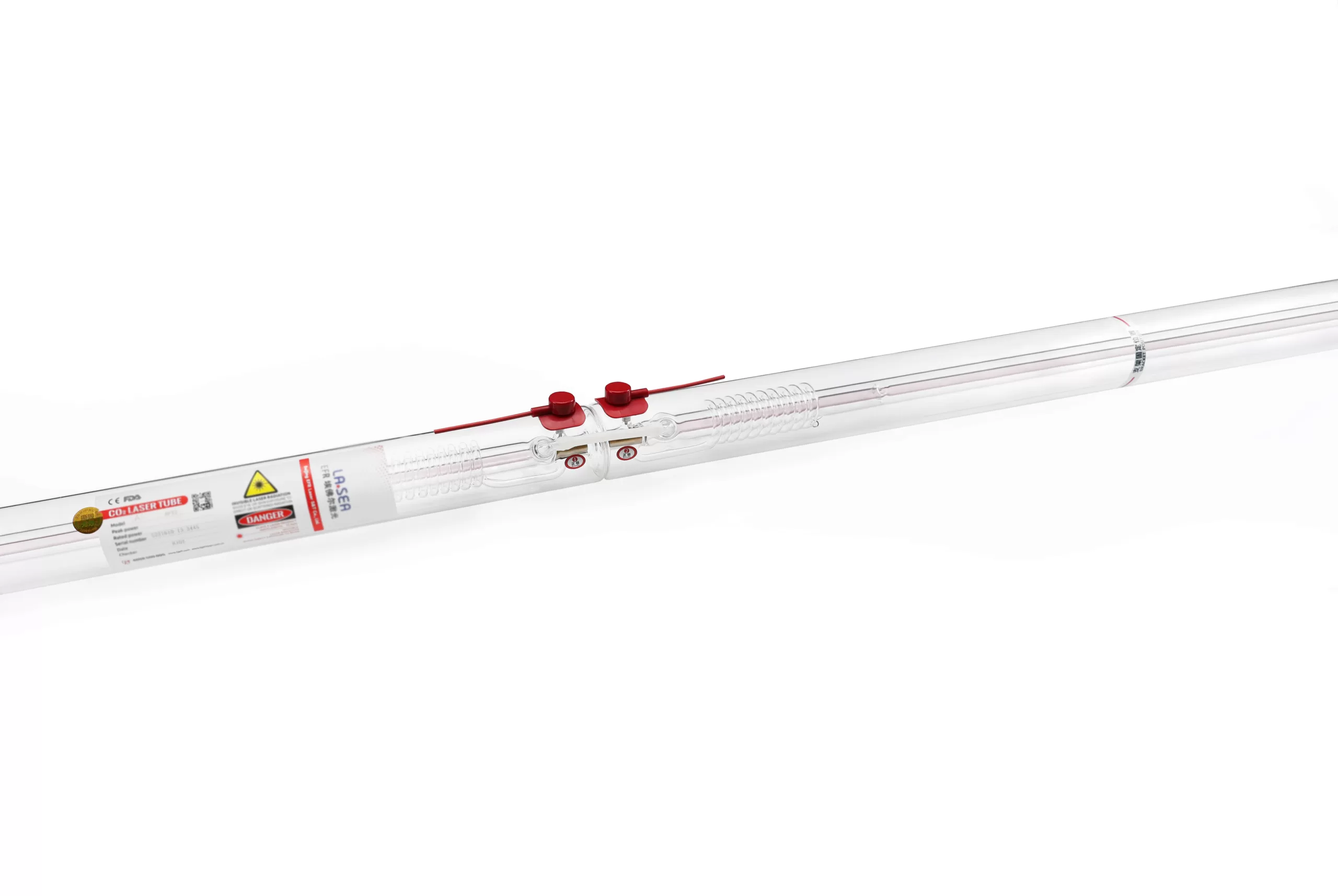

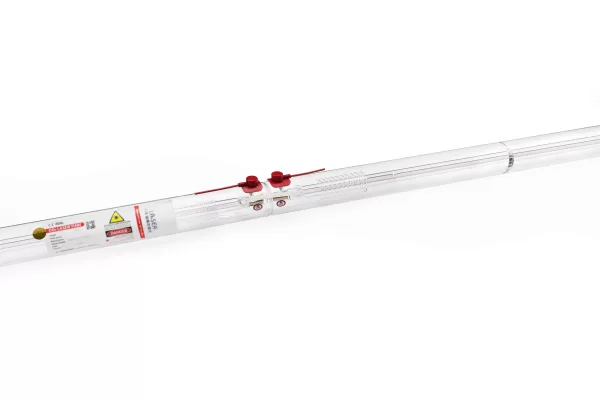

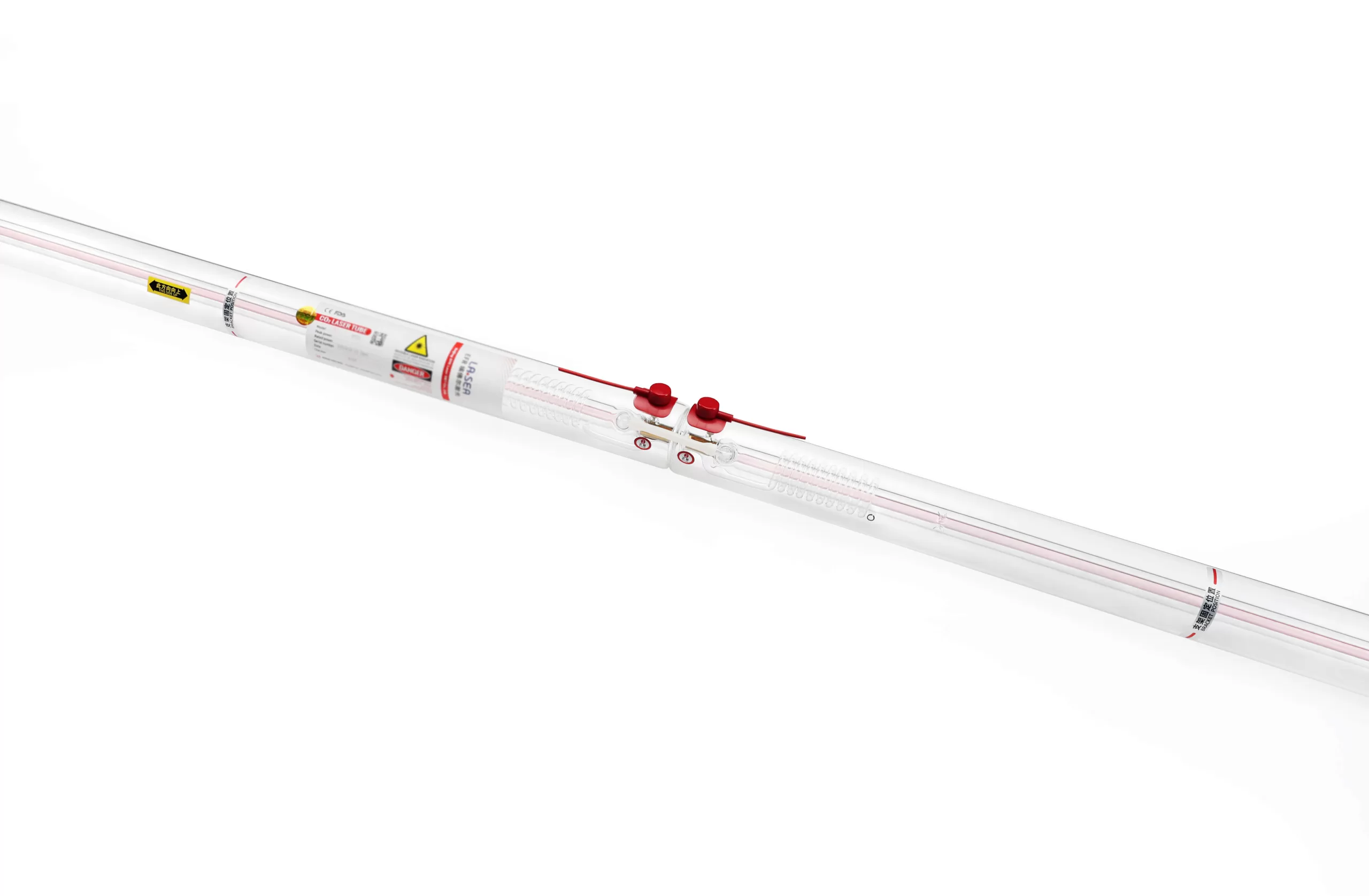

1. Laser multi-link technology is a new laser coaxial concentric multi-segment structure technology, is an innovative process structure concept in the industry. The high voltage end is in the center of the laser, and the two ends are low voltage ends, which can realize segmented discharge.
2. The innovative concept of stage discharge, the use of multi-stage discharge to reduce the operating voltage, greatly reduce the spark and operating voltage, to ensure that the laser tube output power under the premise of significantly improving the working response speed of the laser tube. Compared with the conventional structure of the medium and high power laser tube, this structure greatly improves the problem of output mode change caused by the excessively long laser resonator, optimizes the power output curve of the laser, and obtains a smaller spot size of the medium and high power laser.
3. The cutting-edge coaxial concentric multi-stage process structure in the industry, compared with the conventional low-power laser tube structure, not only maintains the advantages of small spot, fast response speed, low voltage is not easy to break down, but also realizes the geometric growth of the output power from the structure, and greatly improves the processing efficiency in the practical application field.
4. The coaxial concentric multi-segment laser tube has multiple advantages of medium and high power laser tube and low power laser tube,the response speed is fast, the laser spot is small, the processing speed is fast, the output power is high, the working stability is high, the processing efficiency is high, and the application effect is more prominent in the field of marking, engraving, cutting and other materials processing.
5. The high pressure protection device is added to effectively dust and moisture-proof, so that the laser can adapt to a variety of complex industrial environments and effectively extend the working life.
Description
1. Laser multi-link technology is a new laser coaxial concentric multi-segment structure technology, is an innovative process structure concept in the industry. The high voltage end is in the center of the laser, and the two ends are low voltage ends, which can realize segmented discharge.
2. The innovative concept of stage discharge, the use of multi-stage discharge to reduce the operating voltage, greatly reduce the spark and operating voltage, to ensure that the laser tube output power under the premise of significantly improving the working response speed of the laser tube. Compared with the conventional structure of the medium and high power laser tube, this structure greatly improves the problem of output mode change caused by the excessively long laser resonator, optimizes the power output curve of the laser, and obtains a smaller spot size of the medium and high power laser.
3. The cutting-edge coaxial concentric multi-stage process structure in the industry, compared with the conventional low-power laser tube structure, not only maintains the advantages of small spot, fast response speed, low voltage is not easy to break down, but also realizes the geometric growth of the output power from the structure, and greatly improves the processing efficiency in the practical application field.
4. The coaxial concentric multi-segment laser tube has multiple advantages of medium and high power laser tube and low power laser tube,the response speed is fast, the laser spot is small, the processing speed is fast, the output power is high, the working stability is high, the processing efficiency is high, and the application effect is more prominent in the field of marking, engraving, cutting and other materials processing.
5. The high pressure protection device is added to effectively dust and moisture-proof, so that the laser can adapt to a variety of complex industrial environments and effectively extend the working life.
